Perforated Rolling Shutter Door Machine


Profile show


Equipment:
3T Decoiler, Roll forming machine, PLC cabinet, flying saw cutting,  63T punching press,holes punching mould,( 1 set),mechnical feeder,Output table(2),
Flow chart:
Passive uncoiler --- Mechanical Feeder --- Holes Punching --- Forming --- Flying Saw Cutting --- Outables

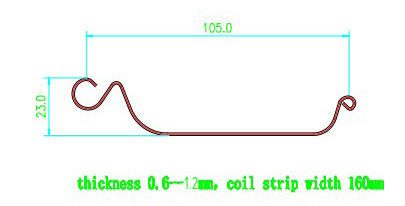

Drawing:



Descrition:

1

Material thickness

mm

0.6-1.2mm Full hard,350Mpa

2

Forming speed

m/min

12-15

3

Roll station

/

14

4

Main power

kw

7.5

5

Cutting  power

kw

5.5

6

Control system

/

PLC panasonic/omron/simens/mitsubishi

7

Holes punching

/

80T punching press made in China

8

feeder

/

Mechnical feeder

9

Drive

/

Chain drive

10

Decoiler

3

3T manual decoiler
