1-6mm x 2200mm Cut-to-length Machine



Components of 1mm-6mm x 2200mm leveling&cut-to-length machine

Hydraulic coil car(20T)

1

Hydraqulic coil car(20T)

1

V-shaped coil storage platform

1

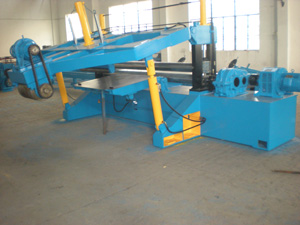

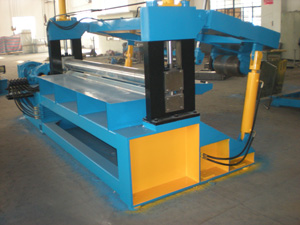

guiding&pressing and shovel head unit,

1

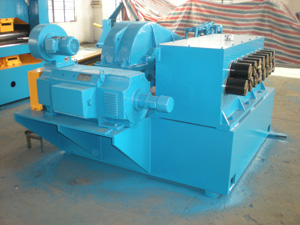

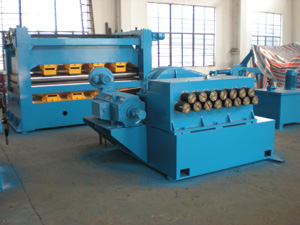

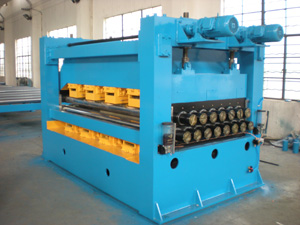

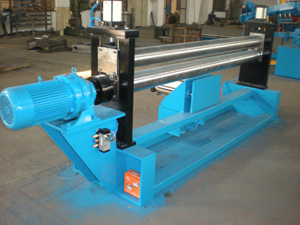

2 pinch rolls and 15 leveling rolls

1

Sheet sides guiding organ

1

 Length encoder table

1

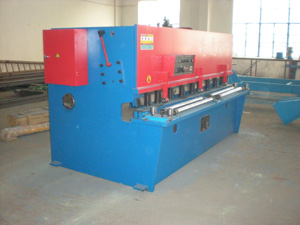

Shearing machine

1

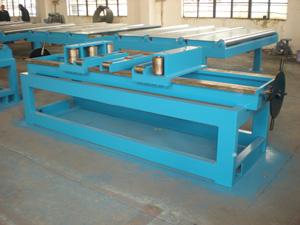

Sheet transmission table

1

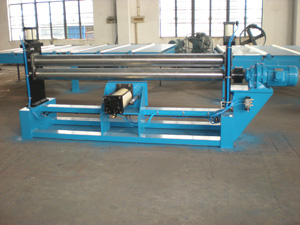

End sheet pinch unit

1

Sheet pushing unit(pneumatic auto-stacker

1

Hydraulic control cabinet

1

Pneumatic control system

1

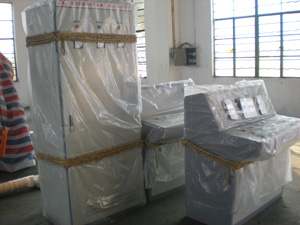

Electrical control cabinets

1

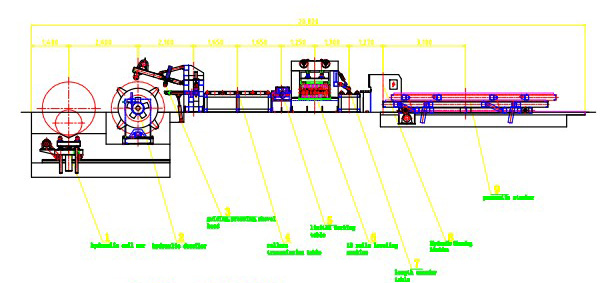

Flow chart:

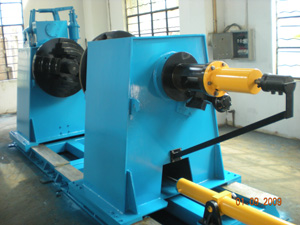

Hydraqulic coil car--hydraulic single head decoiler--guiding&pressing and shovel head unit--sides guiding organ--2 pinch rolls--- sides guiding unit-----15 rolls leveling--length encoder system---  hydraulic shearing machine---sheet transmission table------sheet pushing units(pneumatic stacker)-----hydraulic control  system and electrical  control cabinets

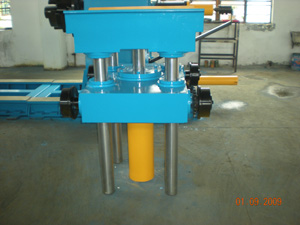

  • V-shaped platform and coil car
  • Form of coil car: four-wheeled walk
  • Structure of coil car: steel structure and it is V-shape on top.
  • Power of continuous walk:2.2kw cycloidal gear decelerator
  • Power of lifting and lowering:hydraulic cyliner driven ф160mmx700mm
  • max journey of lifting and lowering:700mm
  • Max loading capacity:20000KG
  • walking speed:7.48m/min
  • electrical control system
  • 1Power supply:380V,50Hz or design according to the customer local standard
  • PLC control is Mitsubishi brand,Japan and human-interrative touch screen from Taiwan to realize the whole line control
