PU panel line



Profile show:


Main Technical specifications:
Garage door: width 435mm---552mm adjustable or according to the customer's requirements
Thickness:39mm adjustable or according to the customer's requirements
Length:min 1.8m
To change the roll forming machine to produce other profiles or according to the         customer's profiles
Wall Panel: To design according to the customer's requirement
Width: 1000mm
Thickness:35--200mm adjustable
Length:min 2.5m

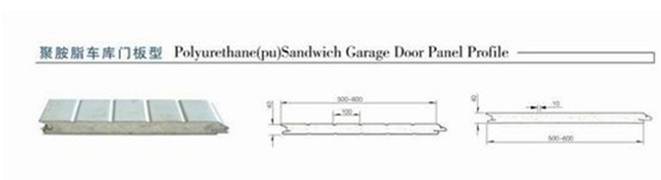

Profile Drawing:

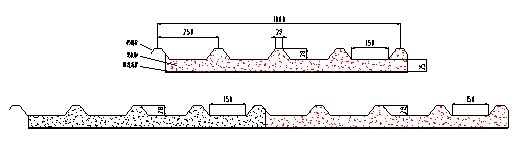

wall panel: roof Panel:
