Strut Rail Forming Machine

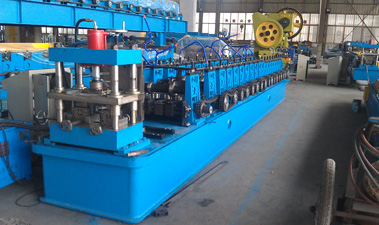

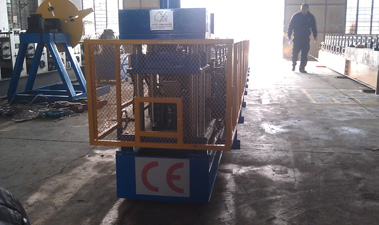

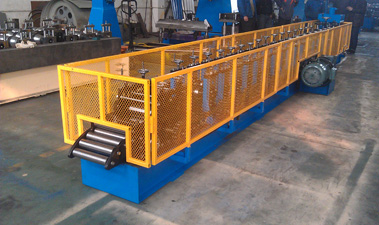

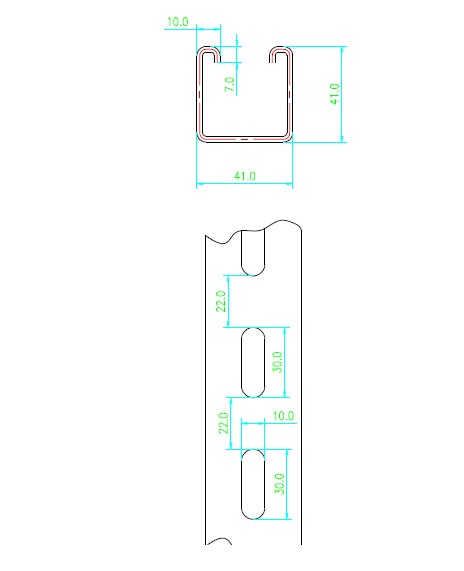

Drawing:

Process flow:
Motorized-decoiler-Powered leveling –Servo motor feeding-Hole punching- Forming-Hydraulic cutting-Output table

Main technical parameters :

※Finished products:41/41mm slotted Channels
※Raw material request:Q235 cold steel.
※Material thickness: 1.5mm--2.5mm
※Whole line working speed: >3-5m/min

Specifications:

NO.

Name

Quant.

Remark

1

Motoized  decoiler

1

3T

2

Leveling machine

1

5.5kw frequency change driving-motor,speed adjustable

3

Speed control sensor

1

It can make the punching and forming speed simutaneous

4

NC300 servo motor Feeder

1

NC300 Servo motor drive

5

Punching press

1

80tons Capacity

6

Punching mould

1set

       Cr12


7

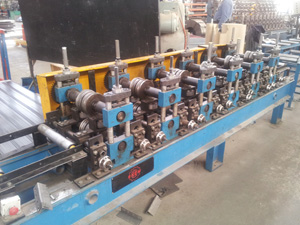

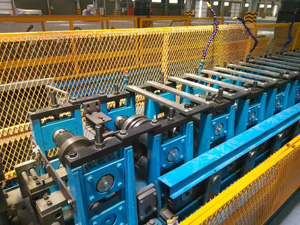

Main forming

Machine unit


1

16 forming stations
Cast iron stands
chain drive

8

Turkish head

1 set

It can make the product straight

8

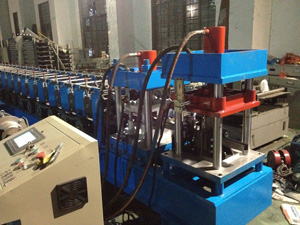

Hydraulic cutting

1

Material GCr15,HCR58-62
Hydraulic power 7.5kw

9

Cutting blade

1set

Cr12

10

Run-out table

1

Steel frame with Rollers

11

Electric panel

1

PLC control system,Panasonic/Omron
Yaskawa inverter
