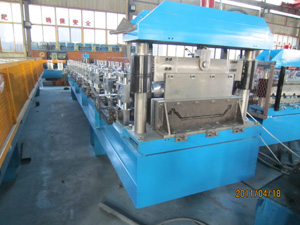

Facia Board Forming Machine



Descrition:

1

Material thickness

mm

0.4—0.8mm G350Mpa

2

Forming speed

m/min

12-18

3

Roll station

stations

12

4

Main power

kw

5.5

5

Hydraulic power

kw

3

6

Control system

/

PLC panasonic/omron/simens/mitsubishi

7

Drive

/

Chain drive

8

Decoiler

/

5T/manual decoiler ( coil car as option)

Equipment:
3T manual decoiler,roll forming machine, hydraulic station, PLC cabinet, hydraulic shear,outables(2x2m)

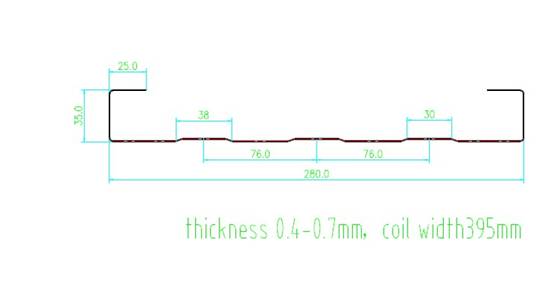

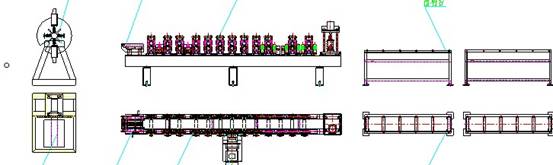

Drawing:

Flow chart:
Decoiler-feeding---forming--cutting-product-outables
