0.2--3 High Speed Cut-to-length Machine



Basic specification of the whole line:
Steel coil grade:бs≤360N/mm2,pre-painted steel or galvanized steel
Coil thickness:0.3--2mm
Coil width:500mm---1250mm
coil outer diameter: ф1000--- ф1800mm
Coil inner diameter:φ460mm--φ520mm
Cutting length:1000mm---6000mm
Cutting length tolerance:+/-0.5mm  according to the length 2000mm
Cutting diagonal tolerance:+/-1mm according to the length 2000mm
Leveling accuracy:≤±1.0mm/m2
Line speed:0--110m/min
Cutting speed:25 --30pcs/min according to 2m long sheet
Whole Line weight:50t

Components of 0.3mm---2mm x 1250mm leveling&cut-to-length machine

Hydraulic coil car(25T)

1

Hydraulic double tampered decoiler(25T)

1

V-shaped coil storage platform

1

Head guiding& shoveler head unit,

1

2 pinch rolls and 19 pre-leveling rolls

1

Pit(loop)

1

Center alligning unit

1

 2+2 rolls( length measuring)

 1

Hydraulic Shearing machine

1

Belt transmission table

1

Sheet piling-up platform

1

Hydraulic lifting& lowering Stacking table

1

Sheet unloading coil car

1

Hydraulic control station

Pneumatic control system

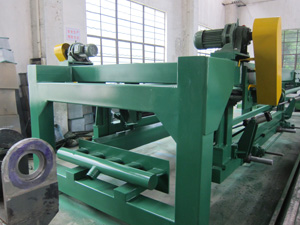

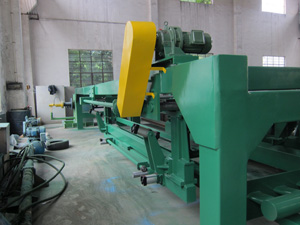

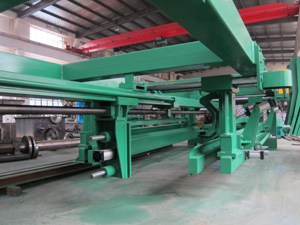

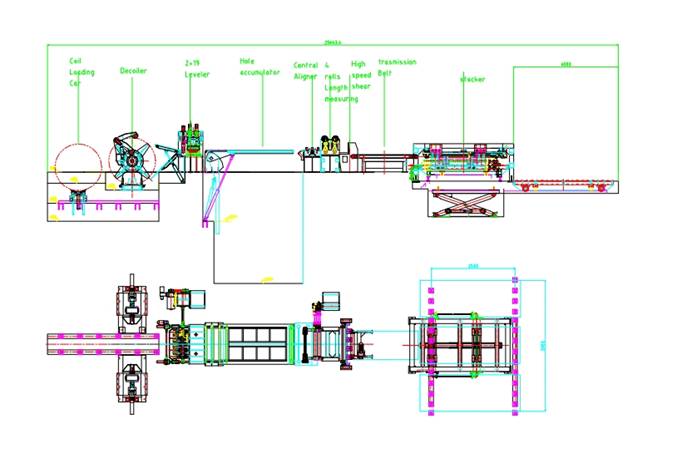

Flow chart:
Hydraqulic coil car--hydraulic double tampered decoiler--guiding&pressing and shoveller head unit--center alligning --2 pinch rolls&19rolls leveling machine--pit--guiding--4 rolls leveling for measuring the length---sheet transmission table----high-speed shearing machine--sheet transmissioning belt---auto stacker-----hydraulic control  system and electrical  control cabinets
