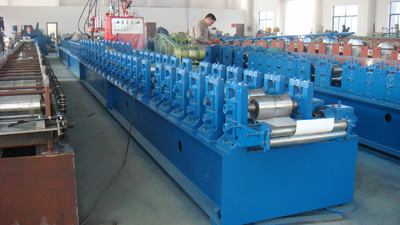

European roller shutter forming machine

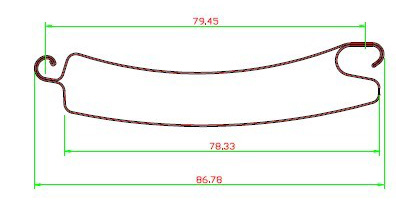

Drawing:

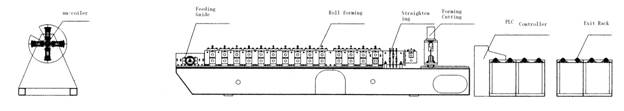

Production Flow:
Put the steel coil on the un-coiler—→Feeding guide equipment—→Roll-forming Machine—→Foaming machine —→Adjusting device —→ Punching device----Flying saw cutting—→finished products on stacker

Specifications:

1

Material thickness

mm

0.4-0.6mm Full hard,G550Mpa

2

Forming speed

m/min

12-15

3

Roll station

/

40

4

Main power

kw

7.5

5

Cutting  power

kw

2.2

6

Control system

/

PLC panasonic/omron/simens/mitsubishi

7

Drive

/

Chain drive

8

Decoiler

1.5T

1.5T manual decoiler
