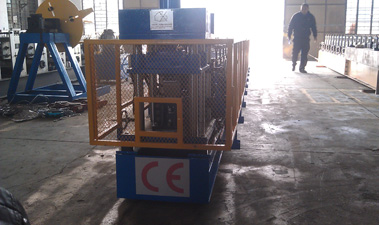

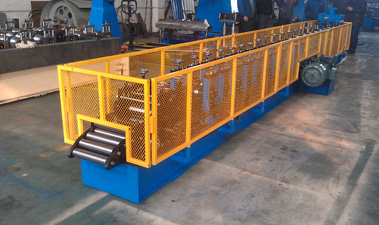

Strut Forming Machine

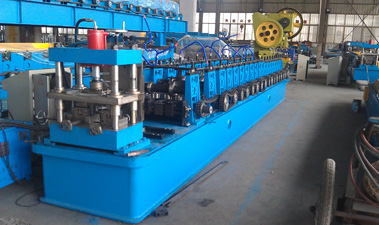

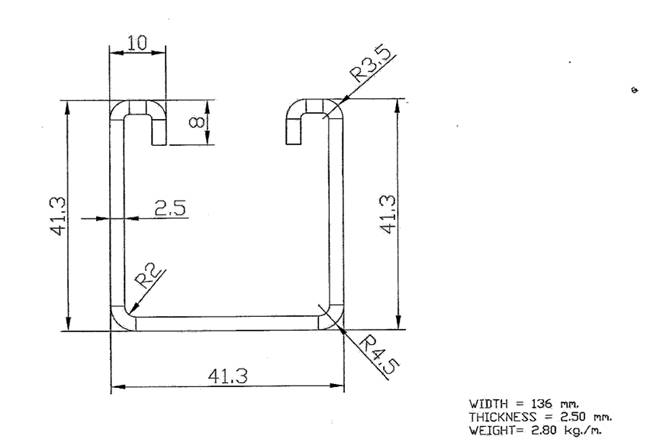

Profile Drawing:

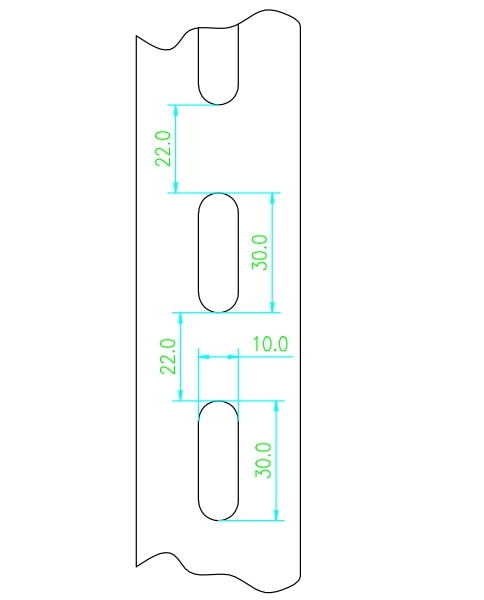

Holes punching size:

Process flow:

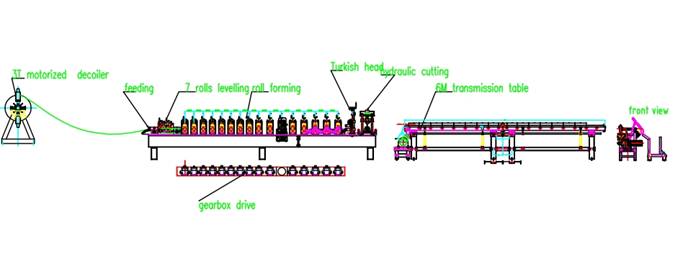

Motorized-decoiler-- feeding--leveling-hydraulic punching-Forming-Hydraulic cutting-6M trasmission table

NO.

Name

Quant.

Remark

1

Motorized  decoiler

1

3T

2


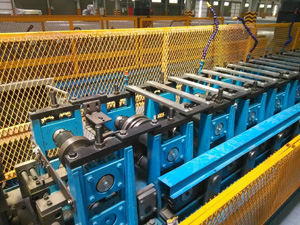

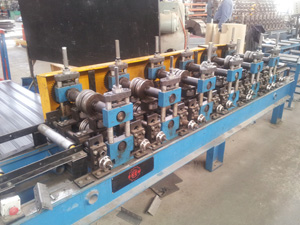

Main forming
Machine unit


1


22 forming stations

 Cast iron stands

Gearbox drive

22KW motor made in China

3

Turkish head

1 set

It can make the product straight

4

Hydraulic cutting

1


Material GCr15,HCR58-62
Hydraulic power 7.5kw


5

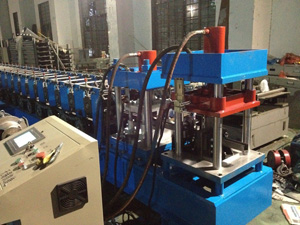

Hydraulic pre-punching

1 set

  1. stop-to-punch
  2. 1 set of holes punching mould

6

Cutting blade

1set

Cr12

7

6M Run-out table

1

  1. Steel frame with Rollers
  2. Pneumatic pushing and drop the product

8

Electric control cabinet

1


1)PLC control,Siemens
2)Yaskawa inverter ,made in Japan
3)Omron encoder ,made in Japan
